HS 5500 Diesel

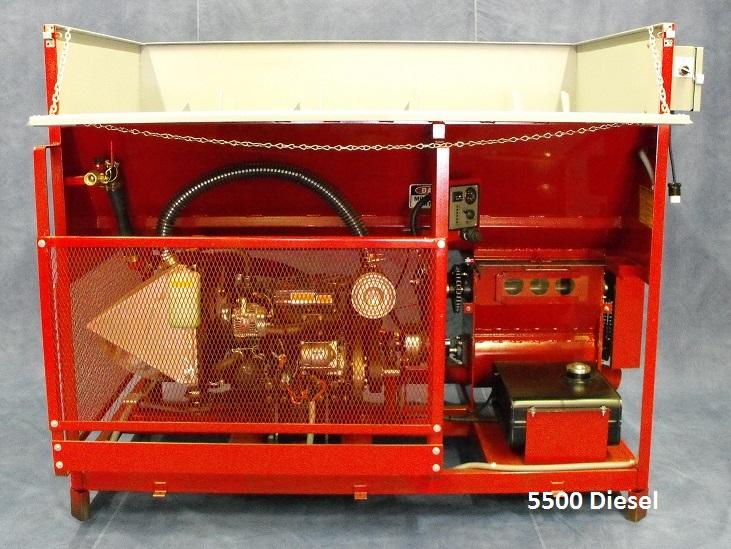

Heat Seal 5500 Diesel Insulation Blowing Machine





Please call us to enquire!

Request a Quote


 AIRLOCK EXHAUSTER:  This bleed off mechanism results in improved coverage and greatly reduces dust in the attic.

 OUTPUT: Cellulose 135 bags/hr.  (4,050 lbs. - 1,840 kg.), Fibreglass 82 bags/hr.   (2,952 lbs. - 1,342 kg.), Rockwool 100 bags/hr. (3,600 lbs. - 1,636 kg.)

 POWER:   1001cc 3 cylinder Kubota diesel engine, 26 amp alternator. Oil and fuel filters, glow plug pre-heat. Electric shut down.

 POWER CONTROLS:  Remote mounted throttle, mechanical tachometer and hourmeter. Warning lights for: oil pressure, temperature and charging voltage.

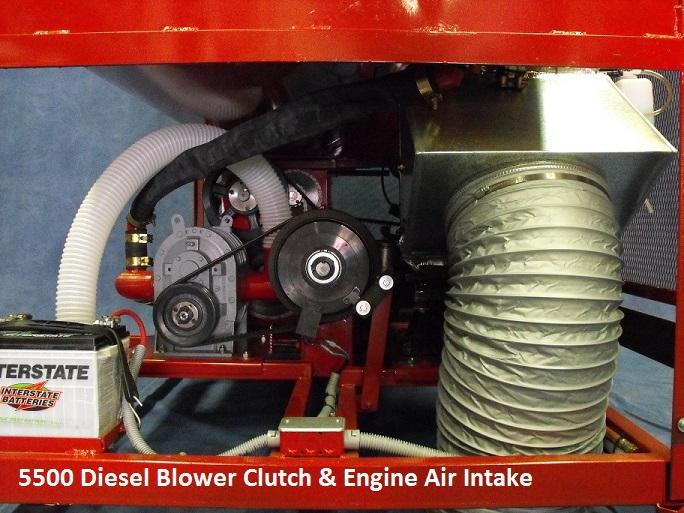

 DOUBLE CLUTCHES:  Electro-magnetic double clutches allow air and material flow to be controlled individually by remote control. Expected life 10 to 15 years.

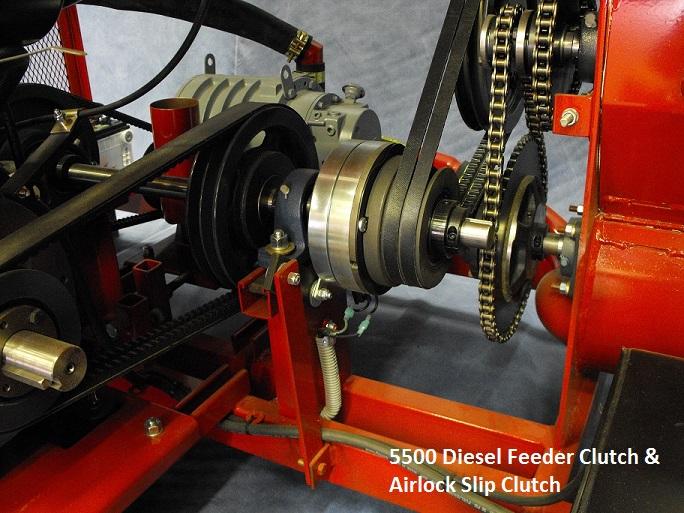

 SAFETY CLUTCH:  Safety clutch will slip if any foreign material (e.g. knives or bolts) jams the machine.

 REMOTE CONTROL:  Box mounted on side of machine. Totally separate from engine controls. Relays are plug in type. 150' remote cord supplied.

 AIR CONTROL:  Bleed off valves can be operated independently. One way air valve prevents insulation from backing up into blower.

 MATERIAL CONTROL:  Slide gate.

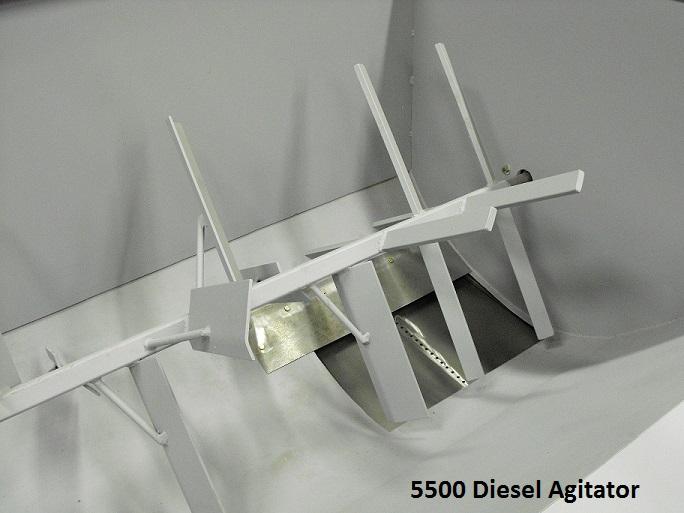

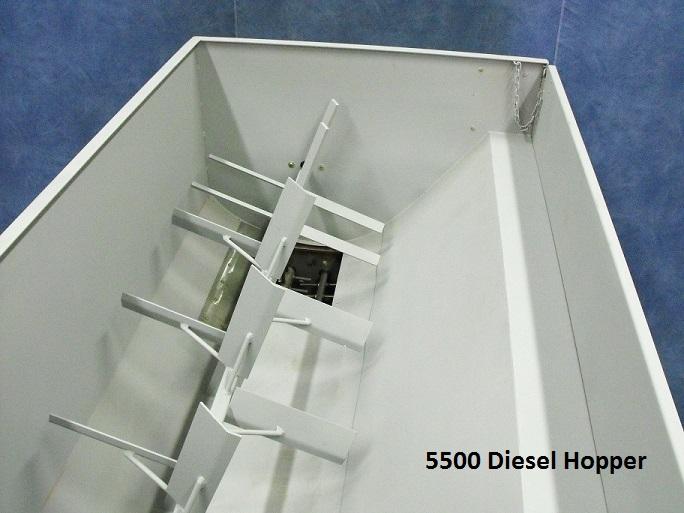

 HOPPER: 57-cubic foot capacity, made with heavy gauge metal with heavy-duty reinforced feeder paddles for uniform material feed.
                  NOTE: 5500 Diesel is 10" longer than the standard 5500 to accommodate Kubota motor.

 SHREDDER:  Double shredder with self-cleaning tines. Hinged doors on each side for easy access. Front door has plexiglass material feed monitoring window.

 AIRLOCK CHAMBER:  Rotary type, plate steel construction (wear resistant), 20" long with 12" diameter with 4" outlet. (Recommended 150' of 3.5" hose).

 BLOWER:  Positive displacement 4L rotary lobe blower. 7 psi 433 CFM

 DIMENSIONS:  48 1/2" wide, 82" long, 60" high. Shipping weight: 1,700 lbs.

  INSTALLATION:  When installed correctly, only outside air is used for: Cooling of Engine, Blower Intake, Combustion Air.
