HS 5500 Gas

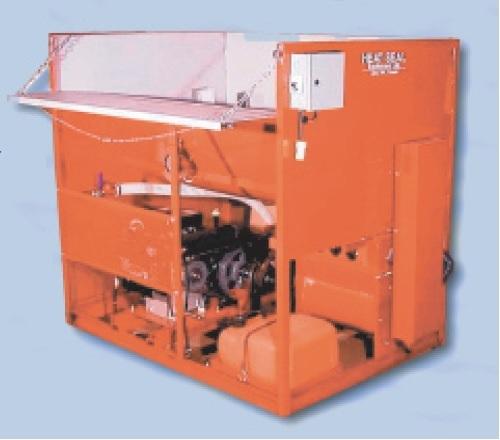

Heat Seal 5000 Gas Insulation Blowing Machine





Please call us to enquire!

 AIRLOCK EXHAUSTER: This bleed off mechanism results in improved coverage and greatly reduces dust in the attic


 OUTPUT: Cellulose 135 bags/hr. (4,050 lbs. - 1,840 kg.), Fiberglass 82 bags/hr.   (2,952 lbs. - 1,342 kg.), Rockwool 100 bags/hr.  (3,600 lbs. - 1636 kg.)


 POWER: 22- HP 2 cylinder Honda Air Cooled gasoline engine complete with electric start, 20-amp alternator, spin-on oil filter, pressurized lubrication, muffler exhaust system, stainless steel flexible tubing, 6 gallon tank.



 DOUBLE  CLUTCH:  Electro-Magnetic double clutches allow air and material flow to be controlled individually by remote control.  Expected life 10 to 15 years.


 SAFETY CLUTCH:  Safety clutch will slip if foreign material (eg. knives or bolts) jams the machine.


 POWER CONTROLS:  Motor mounted ignition switch, choke, throttle control and digital tachometer, hourmeter.


 REMOTE CONTROL:  Box mounted on side of machine.  Totally separate from ignition system.  Relays are plug in type.  150' remote cord supplied.


 AIR CONTROL:  Bleed off valves can be operated independently.  One way air valve prevents insulation from backing up into blower.


 MATERIAL CONTROL: Slide gate.


 HOPPER: 50-cubic foot capacity, made with heavy gauge metal with heavy-duty reinforced feeder paddles for uniform material feed.


 SHREDDER: Double shredder with self-cleaning tines.  Hinged doors on each side for easy access.  Front door has plexiglass material feed monitoring window.


 AIRLOCK CHAMBER:  Rotary type, plate steel construction (wear resistant), 20" long with 12" diameter with 4" outlet.  (3-1/2" hose can be used with an adapter).


 BLOWER:  Positive displacement 4L rotary lobe blower.  7 psi 433 CFM.


 DIMENSIONS: 48 1/2" wide, 72" long, 60" high.  Shipping weight: 1,485 lbs.


 INSTALLATION:  When installed correctly, only outside air is used for: Cooling of Gas Engine, Engine Carburetor, Blower Intake
